Description

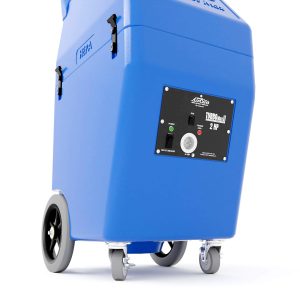

The TurboMax 3 is a powerful and efficient machine designed for both commercial and residential air system cleaning. With its 3 HP motor and advanced filtration system, it provides exceptional cleaning performance while remaining easy to maneuver and transport.
Key Features:
- Compact and Portable: Despite its powerful performance, the TurboMax 3 is easy to handle and transport, making it ideal for various cleaning tasks.
- Powerful Performance: The 3 HP motor delivers an impressive 3500 CFM of air flow at 6.3” static pressure, ensuring efficient and thorough cleaning.
- Advanced Filtration: The 3-stage HEPA filtration system includes:
- 1st Stage: 18” x 24” x 1” electrostatic filter with disposable pads
- 2nd Stage: 17.25” x 23.25” flexible electrostatic air filter
- 3rd Stage: 18” x 24” x 4.75” certified mini-pleat HEPA filter
- Easy to Maneuver: Features 12” rear non-marking dolly wheels and 4” front swivel non-marking casters.
- Durable Construction: Made from rotation molded poly with internal steel reinforcement for a professional-looking, non-marking finish.
- Reliable Operation: Field-tested by Air-Care and backed by a 3-year limited warranty.
Specifications:
- Size: 19.5” W x 29” D x 55.5” H
- Weight: 146 lbs
- Power Required: 120 V, 60 Hz, 20 amps
- Power Cord: 25’, 3 x 12 Ga. extension cords
- Filtration: 4 stages when Pellon pre-filter used
- Pre-Filter: Pellon Moisture Barrier
- 1st Stage: 18” x 24” x 1” electrostatic filter with pads
- 2nd Stage: 17.25” x 23.25” flexible electrostatic air filter
- 3rd Stage: 18” x 24” x 4.75” certified mini-pleat HEPA filter
- Attachment: 12” diameter inlet
- Operating Environment: 25 to 125°F (-4 to 50°C)
- Construction: Rotation molded poly with internal steel reinforcement
- Operating Controls: Plugable panel with ammeters/volt meter, change HEPA light, and circuit breakers
- Air Flow: 3500 CFM with all filters in place
- Static Pressure: 6.3” W.G.
- Motor: 3 HP, 3 phase motor, 3600 RPM maximum
- Blower: Backward inclined
- Wheels: Two 12” fixed rear and two 4” front swivel non-marking wheels
Why Choose TurboMax 3?
The TurboMax 3 is designed to handle the toughest cleaning jobs with ease. Its powerful motor, advanced filtration, and durable construction make it the perfect choice for both large commercial spaces and residential projects. Whether you’re cleaning the largest hotels or the smallest mobile homes, the TurboMax 3 delivers exceptional performance every time.
For more details and to place an order, contact us at 800-322-9919 or email sales@air-care.com.
TurboMax Negative Air Machine Comparisons
| Feature | TurboMax 3 | TurboMax 2 – 1.5 | TurboMax 1 |
|---|---|---|---|
| Application | Commercial and Residential | Light Commercial and Residential | Residential |
| Free Air CFM | 5000 | 3000 | 2500 |
| Filtered CFM | 3500 | 2700 | 2000 |
| Motor Type and HP | 3 HP, Single Phase, Inverter Rated, 3 Phase Motor, 3600 RPM | 1.5 HP, 3 Phase Motor and One Single Phase Inverter with Soft Start and Dual Speeds | 1 HP, Single Phase/Single Speed, 120 Volt |
| Power Source and Line Conditioning | Proprietary power doubler and line conditioning software with ground safety interlock coupled to a 3 HP variable speed Inverter with overload and undercurrent detection | Single phase input, 1.5 HP variable speed inverter with error sensing logic and protection circuits | Single phase, single speed direct wiring to motor |
| Blower Wheel | Direct drive backward inclined 315mm (12.3″) diameter blower wheel | Direct drive backward inclined 280mm (11″) diameter blower wheel | Direct drive backward inclined 280mm (11″) diameter blower wheel |
| Size | 19.5” W x 29” D x 55.5” H | 22.5″ W x 31.5″ D x 55.5″ H | 19.5″ W x 29″ D x 55.5″ H |
| Weight | 146 lbs | 125 lbs | 125 lbs |
| Warranty | 3 Year | 3 Year | 3 Year |
| Soft Start | Yes | Yes | No |
| Speeds | 4 | 2 | 1 |
