UVC Max 25 Installation Guide Image

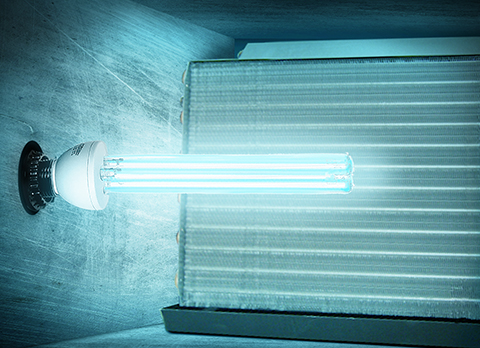

UVC Max 25 illustration inside an air conditioning unit

Easy Install of the UVC Max 25 Whole House Filter

Placement Locations

Typical Home Unit

uvc max install illustration of an air conditioning unit

Typical Commercial Unit

uvc max install illustration of a roof top air handler unit

WARNING: FOR SAFETY DO NOT PLUG IN THE UVC MAX 25 UNTIL THE UNIT HAS BEEN COMPLETELY INSTALLED.

How to Install in a Duct Board System

uvc max install illustration

When the proper location for the UVC MAX 25 has been selected, use the duct board mounting plate (5”x7” overall) to draw lines where the duct board must be cut 3” wide by 4 1/4” tall.

uvc max install illustration

Cut the rectangular hole and remove the loose piece of duct board or aluminum duct.

uvc max install illustration

Front view and side view of hole.

uvc max install illustration

Place the mounting plate over the access hole.

uvc max install illustration

Bend the mounting plate 90 degrees at the first score point. Do the same for the bottom score point.

uvc max install illustration

Bend the mounting plate 90 degrees at the second score point. Do the same for the bottom second score point.

uvc max install illustration

Insert to UVC MAX 25 into the mounting plate access.

uvc max install illustration

Insert the 4 screws provided into the mounting plate corner holes and screw tightly.

uvc max install illustration

Plug the UVC MAX 25 into a nearby socket.

(24 volt transformer option included for contractor installation)

uvc max install illustration

Download the UVC MAX 25 APP from the
Mac App store on your device,
or the Google Play Store.

How to Install in an Aluminum Duct

uvc max install illustration

When the proper location for the UVC MAX 25 has been selected, cut open a 3″ hole in the center of the duct.

uvc max install illustration

Front and side views.

uvc max install illustration

Insert the UVC MAX 25.

uvc max install illustration

Place screws and drive screws into aluminum.

uvc max install illustration

Plug in the UVC MAX 25

(24 volt transformer option included for contractor installation)

uvc max 25 app image

Download the UVC MAX 25 APP from the
Mac App store on your device,
or the Google Play Store.

Air Purification Products

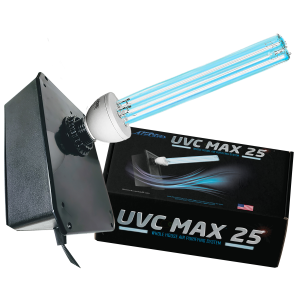

UVC Max 25 110V Whole House Air Purifier
