TurboJet Max II

Login for Price

CFM: 2700
Weight: 125 lbs
ApplicationRESIDENTIAL/LIGHT COMMERCIAL AIR SYSTEM CLEANING
Our brand new TurboJet MAX II has the power of 2 motors but uses a single 3 horsepower motor to clean large commercial air systems with ease.

Hey!, If your seeing this message you are almost setup in our systems to make purchases. Please contact us or your sales rep to complete your account.

Lost your password?

SKU: FG0064 Categories: ,
  • Description
  • Additional Information

Product Description

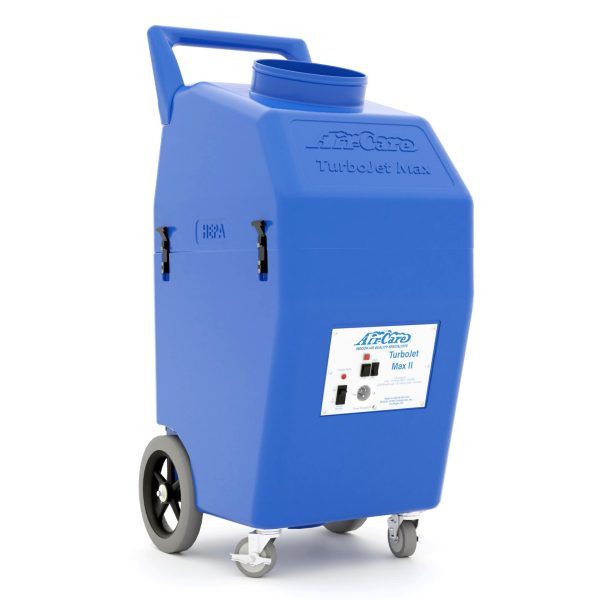

TurboJet Max II

The TurboJet Max II negative air machine is a compact workhorse for residential and light commercial duct cleaning. It’s hard to believe a 22.5” wide cabinet can provide 2700 CFM at 5” static pressure, a full-size 12” inlet, 3-stage HEPA filtration, soft start and will run at 13 or 17 amps and has a 3 year warranty.

This is performance that is found in units twice its size and weight. The legendary performance and size of this type of machine has been proven aboard ships and off-shore drilling rigs, as well as mobile homes and 6,000 room hotels, and yet it is perfect for a one-person operation out of a van, trailer or box truck. The TurboJet Max II uses the same ESP speed control found in the TurboJet 4200.

The power inverter converts 115-volt single-phase household power to 3-phase 220-volt power. This eliminates the start-up power surge required by a single speed motor.

220-240 Volt 50-60Hz also available…

Features

  • Truly portable at 125 lbs and only 22.5″w x 31.5″d x 55.5″h.
  • One-person operation, in and out of service vehicle and up and down stairs.
  • 2 speed soft start 1.5 HP motor w/ 3 phase inverter and direct drive backward incline blower assembly.

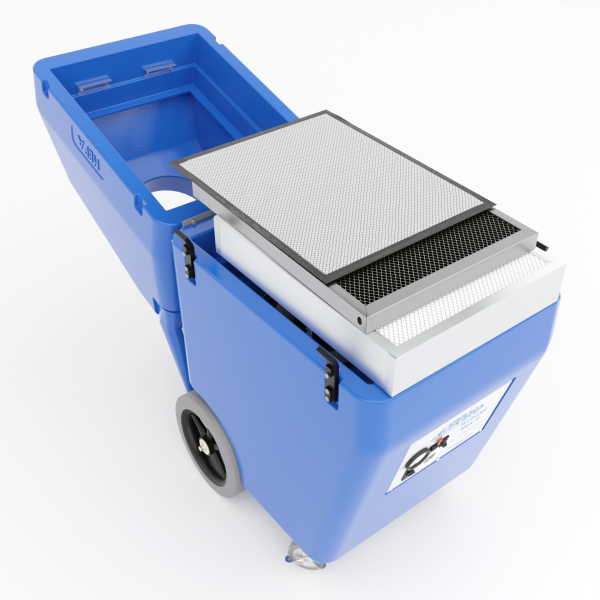

  • Filtration includes 1st stage 18″ x 24″ x 2″ disposable pleated filter, 2nd stage 18” x24” flexible, permanent electrostatic air filter and 3rd stage 18″ x 24″ x 6″ certified HEPA filter, providing efficient filtration with maximum air flow even when dirty.
  • 12 Inch diameter inlet pulls 5 inches of w.c. static pressure, and 2700 CFM air flow (independently tested by an AMCA certified lab with all filters installed).
  • 12″ rear, non-marking dolly wheels, 4″ swivel non-marking casters up front.
  • Steel reinforced, rotationally molded poly construction.
  • Completely field tested by Air-Care, in our service operation.
  • Purchase includes 3-year limited warranty.



Specifications

Specification

Description

Size 22.5″ W x 31.5″ D x 55.5;” H
Weight 125 lbs.
Power required 120 V, 60 Hz, 13 to 17 amps.
Power Cord 25’ Extension Cord
Filtration 3 Stage

1st Stage 18″ x 24″ x 2″ Disposable Pleated Filter
2nd Stage 18″ x 24″ Flexible Electrostatic Air Filter
3rd Stage 18″ x 24″ x 6″ Certified HEPA Filter
Attachment 12″ Dia. Inlet
Operating Environment 25 to 125 Deg. F (-4 to 50 Deg. C)
Construction Rotation Molded Poly
Operating Controls Single Plug-able Panel with all Gauges, Indicators, Switches, & Meters
Air Flow 3000 CFM Free Air/ 2700 CFM Filtered
Static Pressure 5.0″ W.G.
Motor 1.5 HP 3 Phase Motor and One – Single Phase Inverter with Soft Start and Dual Speeds.
Blower One – Backward Inclined
Wheels Two – 12″ Fixed Rear and Two – 4″ Front Swivel Non-Marking Wheels

Negative Air Machine Comparison

ROHS    CE

  TurboJet SuperMAX TurboJet Max II TurboJet Max
Application Commercial and Residential Light Commercial and Residential Residential
Free Air CFM 5000 3000 2500
Filtered CFM 3500 2700 2000
Motor Type and HP 3 HP, Single Phase, Inverter Rated, 3 Phase Motor, 3600 RPM 1.5 HP 3 Phase Motor and One – Single Phase Inverter with Soft Start and Dual Speeds. 1.5 HP Single Phase/Single Speed, 120 Volt
Power Source and Line Conditioning  Proprietary power doubler and line conditioning software with ground safety interlock coupled to a 3 HP variable speed Inverter with overload and undercurrent detection. Single phase input, 1.5 HP variable speed inverter with error sensoring logic and protection circuits.  Single phase, single speed direct wiring to motor.
Blower Wheel Direct drive backward inclined 315mm (12.3″) diameter blower wheel Direct drive backward inclined 280mm (11″) diameter blower wheel Direct drive backward inclined 280mm (11″) diameter blower wheel
Size 22.5” W x 31.5” D x 55.5;” H 22.5″ W x 31.5″ D x 55.5″ H 22.5″ W x 31.5″ D x 55.5″ H
Weight 151 lbs 125 lbs 125 lbs
Warranty 3 Year 3 Year 3 Year
Soft Start Yes Yes No
Speeds 4 2 1

Additional Information

Weight 190
Dimensions 23 x 34 x 49 in
