Description
Single Phase, Single Speed Motor

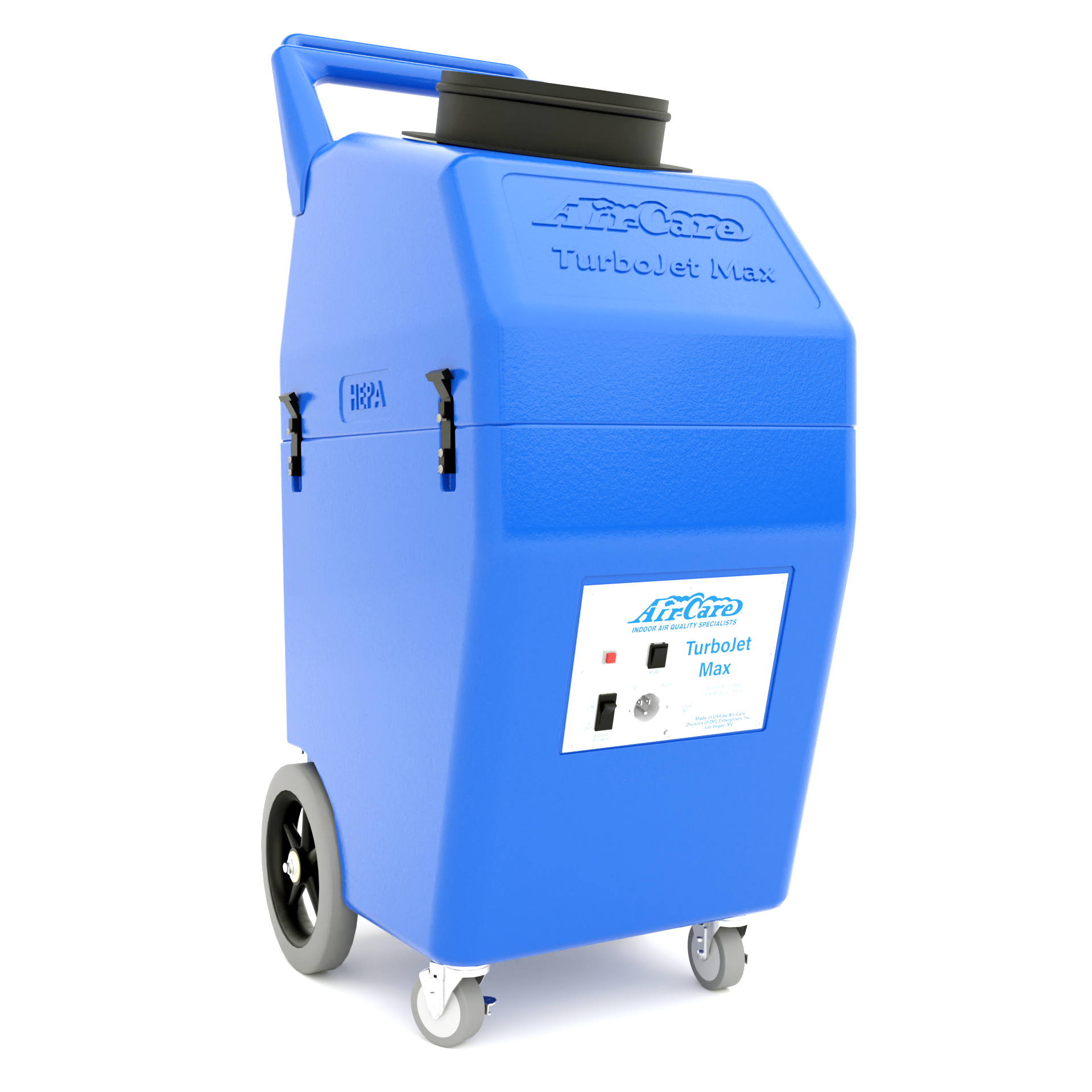

The TurboJet Max negative air machine is a compact workhorse for residential and light commercial duct cleaning. It’s hard to believe a 20” wide cabinet can provide 2000 CFM at 5” static pressure, a full-size 12” inlet, 3-stage HEPA filtration and has a 3 year warranty.
Features
- Truly portable at 125 lbs and only 22.5″w x 31.5″d x 55.5″h.
- One-person operation, in and out of service vehicle and up and down stairs.
- 1.5 HP single speed/single phase motor and direct drive backward incline blower assembly.

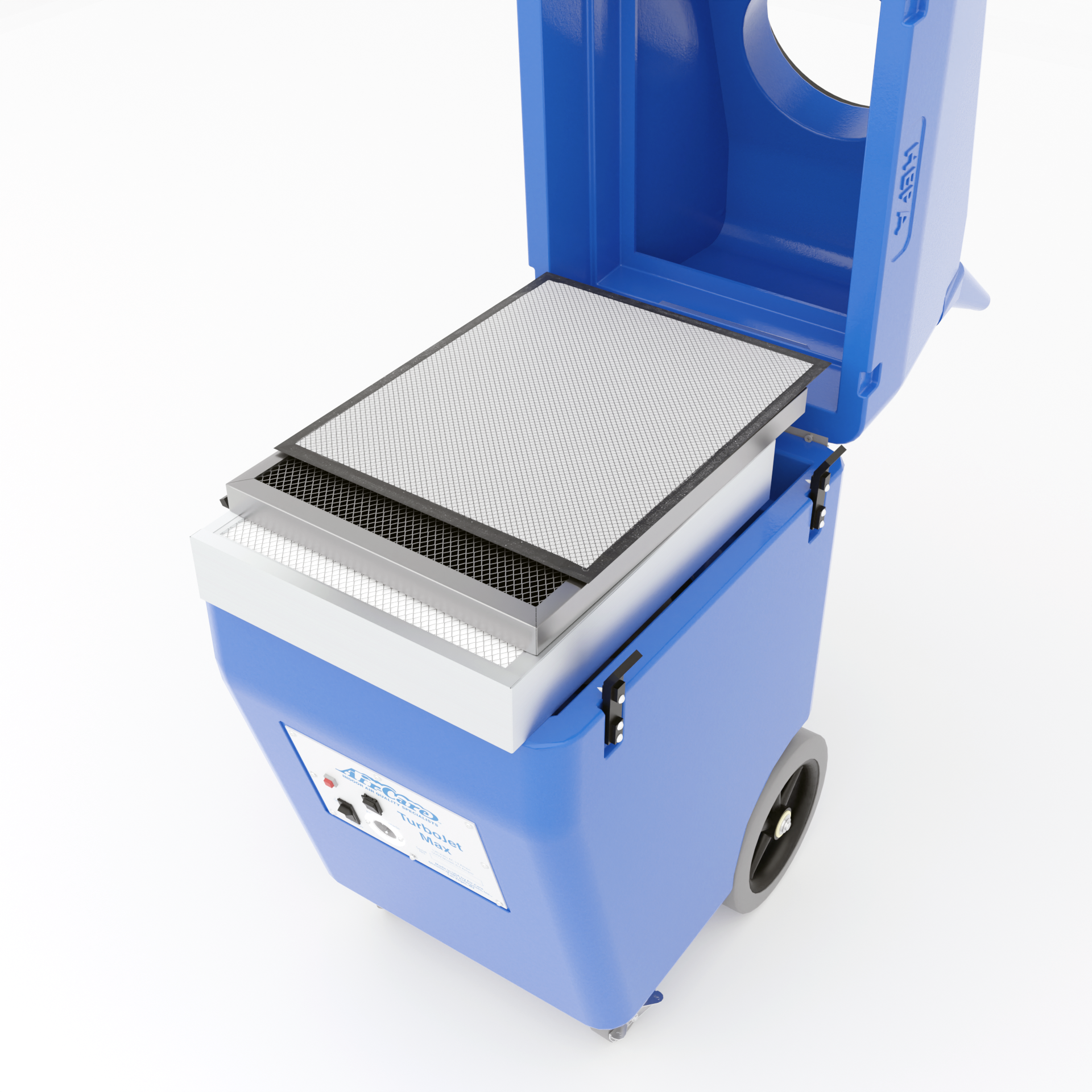

- Filtration includes 1st stage 18″ x 24″ x 2″ disposable pleated bag filter, 2nd stage 18 1/4″ x 24 1/4″ x 1″ permanent electrostatic air filter and 3rd stage 18″ x 24″ x 6″ certified HEPA filter, providing efficient filtration with maximum air flow even when dirty.
- 12 Inch diameter inlet pulls 5 inches of w.c. static pressure, and 2000 CFM air flow (independently tested by an AMCA certified lab with all filters installed).
- 12″ rear, non-marking dolly wheels, 4″ swivel non-marking casters up front.
- Steel reinforced aluminum construction and powder-coated for a professional looking, non-marking finish.
- Completely field tested by Air-Care, in our service operation.
- Purchase includes 3-year limited warranty.
Specifications
|
Specification |
Description |
| Size | 22.5″ W x 31.5″ D x 55.5″ H |
| Weight | 125 lbs. |
| Power required | 120 V, 60 Hz, 13 to 17 amps. |
| Power Cord | 25’ Extension Cord |
| Filtration | 3 Stage |
| 1st Stage | 18″ x 24″ x 2″ Disposable Pleated Filter |
| 2nd Stage | 18 1/4″ x 24 1/4″ x 1″ Electrostatic Air Filter |
| 3rd Stage | 18″ x 24″ x 6″ Certified HEPA Filter |
| Attachment | 12″ Dia. Inlet |
| Operating Environment | 25 to 125 Deg. F (-4 to 50 Deg. C) |
| Construction | Rotation Molded Poly |

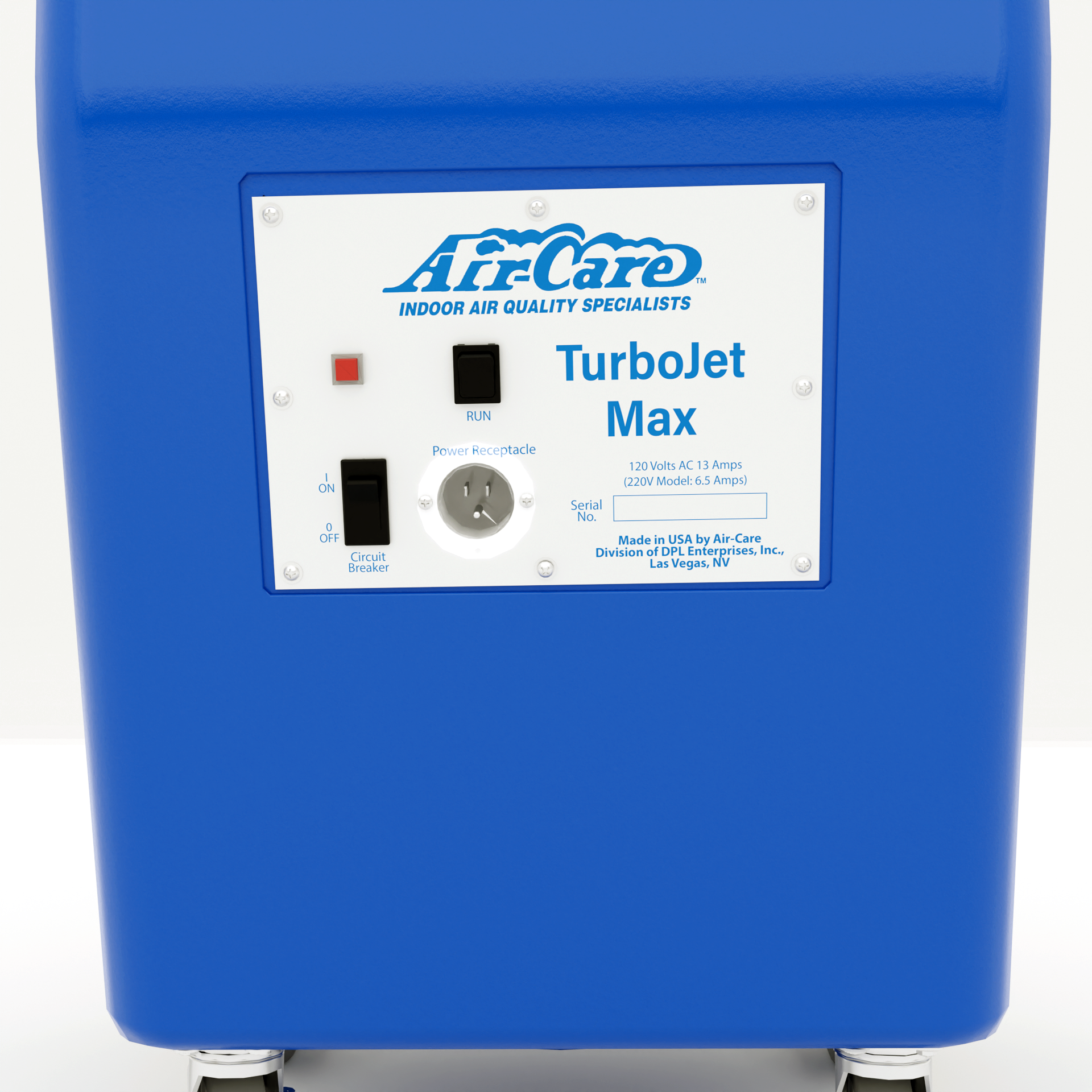

| Operating Controls | Single Plug-able Panel with all Gauges, Indicators, Switches, & Meters |
| Air Flow | 2500 CFM Free Air/ 2000 CFM Filtered |
| Static Pressure | 5.0″ W.G. |
| Motor | 1.5 HP Single Phase/Single Speed, 120 Volt |
| Blower | One – Backward Inclined |
| Wheels | Two – 12″ Fixed Rear and Two – 4″ Front Swivel Non-Marking Wheels |
Negative Air Machine Comparison
| TurboJet SuperMAX | TurboJet Max II | TurboJet Max | |
| Application | Commercial and Residential | Light Commercial and Residential | Residential |
| Free Air CFM | 5000 | 3000 | 2500 |
| Filtered CFM | 3500 | 2700 | 2000 |
| Motor Type and HP | 3 HP, Single Phase, Inverter Rated, 3 Phase Motor, 3600 RPM | 1.5 HP 3 Phase Motor and One – Single Phase Inverter with Soft Start and Dual Speeds. | 1.5 HP Single Phase/Single Speed, 120 Volt |
| Power Source and Line Conditioning | Proprietary power doubler and line conditioning software with ground safety interlock coupled to a 3 HP variable speed Inverter with overload and undercurrent detection. | Single phase input, 1.5 HP variable speed inverter with error sensoring logic and protection circuits. | Single phase, single speed direct wiring to motor. |
| Blower Wheel | Direct drive backward inclined 315mm (12.3″) diameter blower wheel | Direct drive backward inclined 280mm (11″) diameter blower wheel | Direct drive backward inclined 280mm (11″) diameter blower wheel |
| Size | 22.5” W x 31.5” D x 55.5” H | 22.5″ W x 31.5″ D x 55.5″ H | 22.5″ W x 31.5″ D x 55.5″ H |
| Weight | 151 lbs | 125 lbs | 125 lbs |
| Warranty | 3 Year | 3 Year | 3 Year |
| Soft Start | Yes | Yes | No |
| Speeds | 4 | 2 | 1 |
